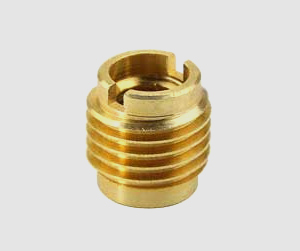

Brass Threaded Inserts

We are one of the largest manufacturers of brass threaded inserts used for plastic moulding.

Brass Threaded Inserts

Material:

  • Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass threaded inserts in form of round, Hexagon, Square etc
  • Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc

Key Features:

  • Thread Size Starts from M1.6 to M50. BA, BSW, BSP, BSPT, BSF & American Threads like UNC, UNF, UNEF, and NPT are also available as per custom requirements
  • Straight, Diamond, opposite diagonal, Knife thread etc. are the knurling options available to give solid gripping to Molding applications
  • Inserts available as per Class 2B ANSI/ASME B1.1 & Confirms to ISO metric 6H Thread Standards
  • Inserts with collar series provides Options to use Flange to make Electric Contact
  • Ultrasonic series with Opposing Diagonal Knurls provide excellent Torque Resistance Vertical Undercuts in Tri Series Provides Superior Tensile Strength
  • Blind thread or closed bottom Inserts prevents plastic from entering the bottom of the insert

Finish:

Generally Brass Inserts comes with the Natural, Nickel & Tin Finish. But Surface Finishes such as Chromium, Silver, Gold, etc. can be done as per customer’s requirement.
