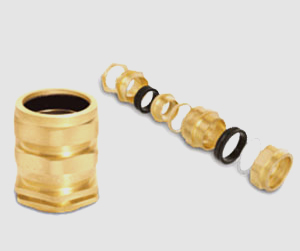

E1W Type Cable Gland

E1W Type Cable Gland

Standard:

BS 6121 PART-1

Application:

Outdoor or indoor, for use with all type of swa cables, plastic or rubber sheated cable

Size:

16 TO 110 (S & L)

Option:

All type of accessories available like Earth Tag, PVC Shroud, Neoprine Rubber and LSF Rubber, PVC Washer, Brass Lock Nut

Specifications :

E1W Gland Size	Mounting Thread		Cable Dimensions				Armour Wire Diameter	Across Corner Diameter
	Dia mm	Length mm	A (min)	A (max)	B (min)	B (max)
16/20	16/20	10	4.5	8.7	8.4	13.5	0.9	25.0
20s	20	10	8.0	11.6	12.9	16.8	0.90-1.25	28.5
20	20	10	10.9	13.9	15.8	20.8	0.90-1.25	34.5
25s	25	10	13.3	17.3	20.0	24.0	1.25-1.60	36.0
25	25	10	16.5	19.9	21.0	27.0	1.25-1.60	40.0
32	32	10	19.3	26.3	26.7	33.0	1.60-2.00	48.5
40s	40	15	24.2	30.2	32.8	37.8	1.60-2.00	56.0
40	40	15	26.0	32.2	35.5	41.0	1.60-2.00	58.5
50s	50	15	32.8	39.8	41.5	47.8	2.00-2.50	68.0
50	50	15	36.5	44.0	45.7	52.2	2.00-2.50	72.5
63s	63	15	42.5	50.0	52.1	60.3	2.00-2.50	82.0
63	63	15	48.5	55.8	59.0	66.0	2.00-2.50	88.0
75s	75	15	54.5	62.2	65.2	72.0	2.50-3.20	98.0
75	75	15	60.5	67.8	71.8	78.0	2.50-3.20	107.5
88/90	88/90	15	68.0	80.0	78.2	90.0	2.50-3.20	124.0

All Kind of E1W Brass Cable Gland are developed as per Custom design and specification
