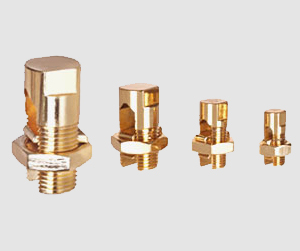

Brass Line Taps

We manufacture a vast range of line taps split bolts cable connectors to meet the material and dimensional specification laid by different International standards.

Brass line taps cable connector are made with high tensile Brass as per BS 2874 -CZ 112. Threads are formed by rolling process giving the nut extra clamping force on split bolts

Cable connectors and components' Pressure pads are made from extruded bars (NOT CAST), preventing the pads from cracking.

Material:

• Free Cutting Brass IS 319 Type (I) or
• Free Cutting Brass As Per BS 249 Type (I) or
• High Grade Free Cutting Brass
• Any Special Brass Material Composition As Per Customers Requirement.

Threads:

• ISO Metric (MM Threads)
• BA Threads
• BSW Threads (Inches)
• UNC, UNF Threads
• Any threads as per custom design.

Sizes:

Size (mm2)	A	B	CA / F	DA / F	E
6	19.85	4.00	12.70	13.35	4.80
10	26.75	4.70	12.70	19.00	5.60
16	26.00	5.70	12.70	19.00	5.60
25	28.00	7.30	16.00	19.00	5.60
35	35.00	7.80	18.50	24.00	6.35
50	42.00	9.70	24.10	27.20	8.65
70	44.50	11.20



Any kind of Split Bolts/Line Taps can be developed and supplied exactly as per customer specifications.
